500-506-10数显卡尺
500-506-10数显卡尺
500-506-20数显卡尺
500-506-10数显卡尺,量程:0-600mm
公英制数显转换,0-24inch数显卡尺

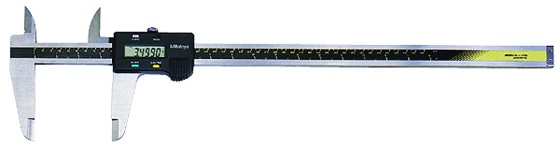

Mitutoyo 500-506-10 Absolute Caliper 0-24"/ 600mm-No ThumbRoller

Description

Mitutoyo 500-506-10 Absolute Digimatic Caliper has a measuring range of 0-24"/ 600mm with .0005"/ 0.01mm resolution. Includes SPC Data Output but does not have Thumb Roller. Features a large, clear LCD readout, inch/metric conversion and a Zero/Absolute key that allows the display to be zero-set at any slider position along the scale for incremental comparison measurements. This switch will also allow return to the absolute (ABS) coordinate and display of the true position from the origin point, which is usually the jaws-closed position.

Specifications

  • Range:0-24 inch
  • Type:Digimatic
  • Accuracy:±.002”
  • Resolution:.0005"/0.01mm

日本三丰0-600mm大量程数显卡尺500-506-10

产品特点:

日本三丰0-600mm大量程数显卡尺500-506-10

大量程 ABSOLUTE 数显卡尺
500 系列 — 采用特有的 ABSOLUTE 编码器技术
CD-C
特点:
1.内置 ABSOLUTE 标尺的数显大量程卡尺,测量范围 450mm - 1000mm 。
2.允许阶差测量
3.对于有测量数据输出接口的型号,可被应用于统计过程控制和测量系统中。

技术参数:

日本三丰0-600mm大量程数显卡尺500-506-10

规格

精度:±0.05mm(测量范围小于等于600mm型号),±0.07mm(测量范围小于等于1000mm型号)(不包括量化偏差)
分辨力:0.01mm
重复精度:0.01mm
显示: 液晶显示
长度标准: ABSOLUTE 电磁感应式线性编码器
最大响应速度: 无限制
电池: SR44 (1个),938882,用于初始操作检查(标准附件)
电池寿命:正常使用情况下约为3.5年

选件:
日本三丰0-600mm大量程数显卡尺500-506-10

选件

无线于带数显输出功能的型号。
959143:数据保持装置


  苏州斯文克精密测量设备有限公司专业销售日本三丰数显卡尺、0-600mm 现货销售,同时代理美国PMC石油螺纹规、PMC卡板、GSG螺纹规、Gagemaker单项仪、Cameron Ball Gage球规、REX gauge硬度计、进口STOTZ气动量仪、意大利marposs气动量仪。
